Problem: Symbol labels do not display on the map in ArcGIS Pro

Description

When a map service is loaded into ArcGIS Pro, the symbol labels do not display on the map, as shown in the image below.

The symbol labels not displayed on the map

Cause

  • The map service contains features that are not supported in ArcGIS Pro.
  • The map is using an inappropriate symbology type.

Solution or Workaround

Choose one of the options below, depending on the cause, to resolve the issue.

Modify the default label class in ArcGIS Pro

  1. In ArcGIS Pro, right-click on the layer, and select Label.
  2. Click Labeling Properties to view the Label Class pane.

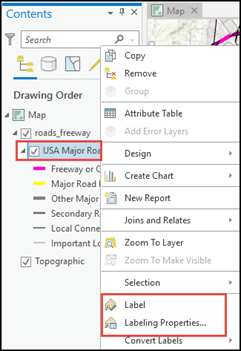

The layer's Contents pane with the option to Select Label Properties
  1. In the Label Class pane, under Class, select SQL, and set the clause for the desired data. In the following example, the Freeway or Major Road option is selected from the FRC_DESC field to be displayed on the map.
  2. Select Add Clause, and click Apply.

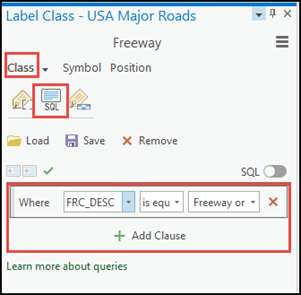

The Label Class pane with the Add clause option
  1. Click the Symbol tab in the Label Class pane, and expand Callout. Select Point Symbol.
  2. Select the settings for the symbol, and click Apply. Refer to ArcGIS Pro: Point symbols for steps to do so.

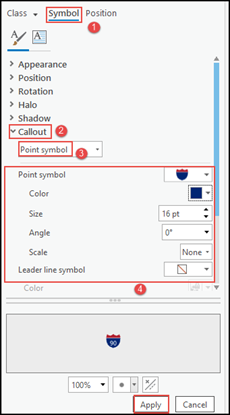

The Label Class pane with the option to Select Point Symbol

Create a new label class in ArcGIS Pro

To display the symbol labels on the map in ArcGIS Pro, create a new label class. For instructions, refer to the article, How To: Label highways with a shield marker containing the highway number in ArcGIS Pro.

Use an appropriate symbology type

To display the labels on the map in ArcGIS Pro, ensure the appropriate symbology is used. Refer to ArcGIS Pro: Unique values for more information.

The following image shows the symbol labels displayed on the map in ArcGIS Pro.

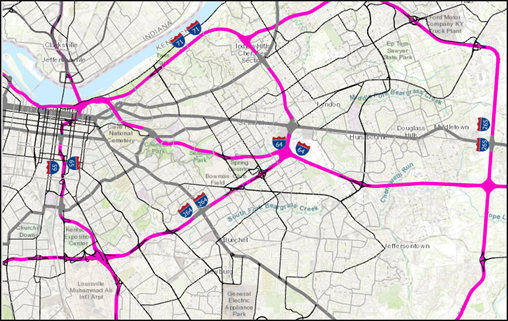

The map in ArcGIS Pro with the symbol labels displayed

Related Information

ArcGIS Pro: Symbols
ArcGIS Pro: Change how labels are displayed

Last Published: 7/29/2021

Article ID: 000026058

Software: ArcGIS Pro 2.8.1, 2.8
