How To: Determine the areas where the attributes of a raster layer intersect a polygon layer

Summary

It is sometimes necessary to determine the areas where the attributes of a raster layer intersect a polygon layer. In studies involving multiple attributes and covering massive acres of land, the intersecting areas may provide helpful information. For instance, finding the areas of land cover types (polygon) of a national park (raster), or identifying land use types (polygon) of a state (raster), or determining the areas of different soil types (polygon) in a study site (raster).

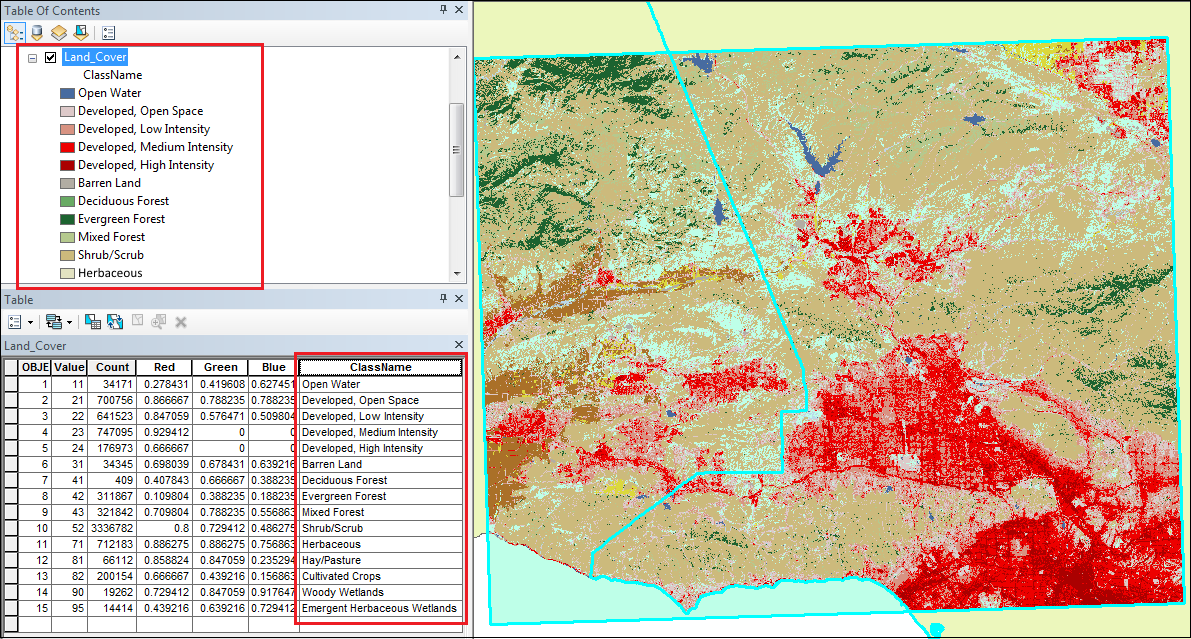

In this article, the areas of each land cover type (raster) intersecting mountain lion habitats (polygon) in southern California are determined. The image below shows an integer raster layer of land cover types in the study area. The ClassName attribute of the Land_Cover raster layer is used in this example.

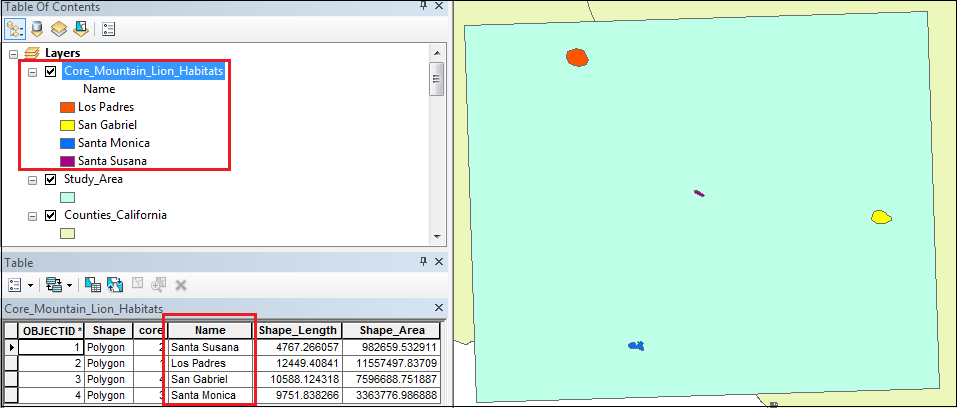

The image below shows a polygon layer of mountain lion habitats in the study area. The Name attribute of the Core_Mountain_Lion_Habitats polygon layer is used in this example.

This is the polygon layer

Procedure

Use the following steps to determine the areas where the attributes of a raster layer (land cover types) intersect a polygon layer (mountain lion habitats):

  1. In ArcMap, use the Raster to Polygon tool to convert the raster layer to a polygon layer.
Note:
The Raster to Polygon tool only works with an integer grid type. Use the Int tool to convert a floating raster to an integer raster. To determine the raster grid type, right-click the raster layer, and click Properties > Source. The Pixel Type field of the Raster Information section shows the grid type. For more information on Esri Grid formats, refer to ArcMap: Esri Grid format.

This is the Pixel Depth field

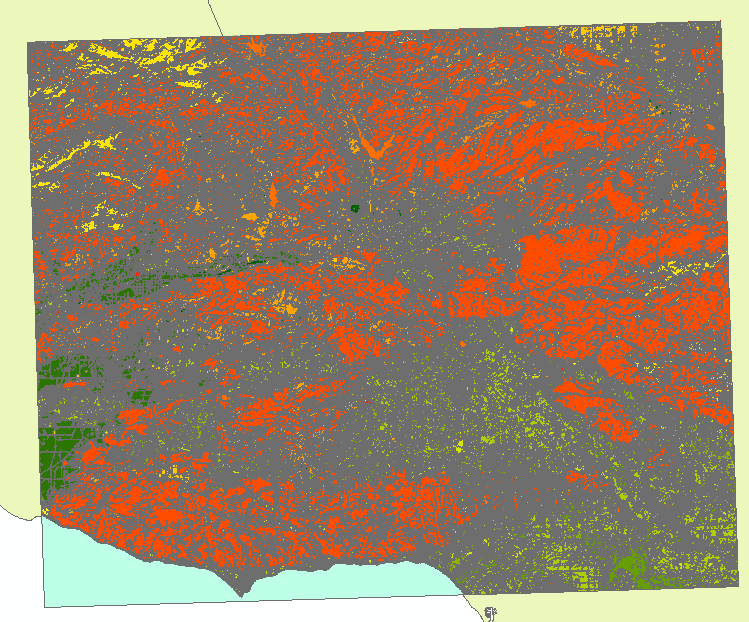

The image below shows the RasterToPoly_LandCover polygon layer created from the Land_Cover raster layer.

This is the output of Raster to Polygon tool

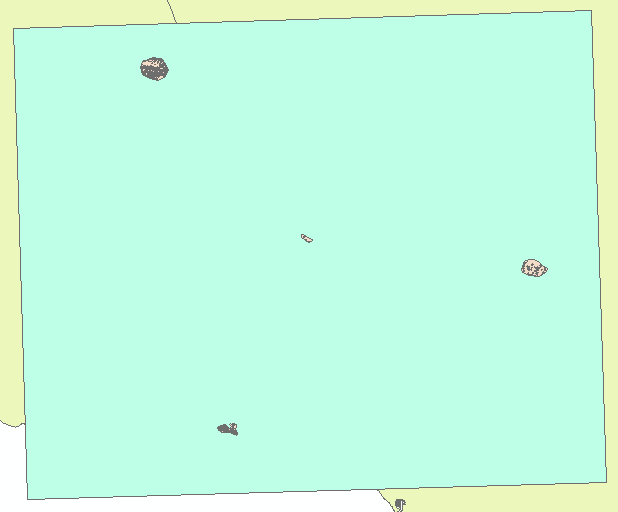

  1. Use the Intersect tool to determine the areas where both polygon layers intersect. The image below shows the areas where the RasterToPoly_LandCover and Core_Mountain_Lion_Habitats polygon layers intersect, named Habitat_LandCover_Intersect.
The output of Intersect
  1. Use the Dissolve tool to find the total area where the attributes of both polygon layers intersect.
    1. For Input Features, select the intersect output layer created in Step 2. In this example, it is Habitat_LandCover_Intersect.
    2. For Dissolve_Field(s), specify the attributes involved. In this example, they are ClassName and Name.
    3. For Field, specify the area property. In this example, it is Shape_Area.
    4. For Statistic Type, select SUM from the drop-down menu.
    5. Click OK.

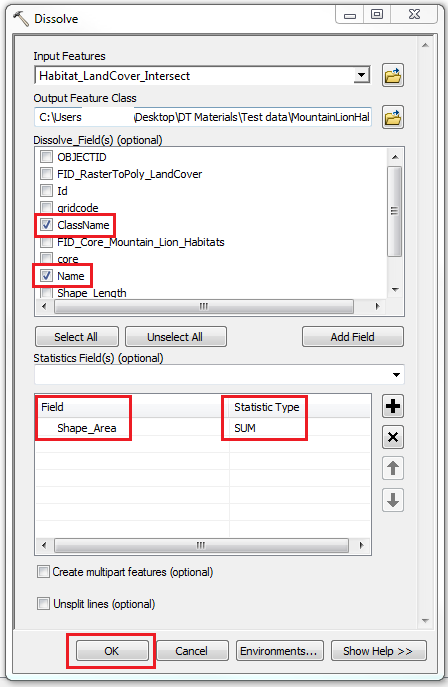

This is the Dissolve dialog box

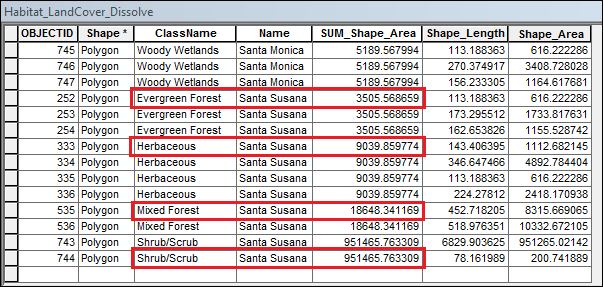

The image below shows the attribute table of the dissolved layer. The total area where the raster layer intersects the polygon layer is shown in the SUM_Shape_Area column.

This is the attribute table of the dissolved layer showing the SUM shape area column

In this article, the types of land cover intersecting the Santa Susana mountain lion habitats are the evergreen forest with 3505.568659 square meters, herbaceous cover with 9039.859774 square meters, mixed forest with 18,648.341169 square meters, and shrub or scrub with 951,465.763309 square meters.
